ADT examples

Remember, it’s not that deep

An ADT in Snap! is just a set of blocks that together create an abstraction by hiding the details of how some related pieces of data are stored.

Quiz item

Constructor

Selectors

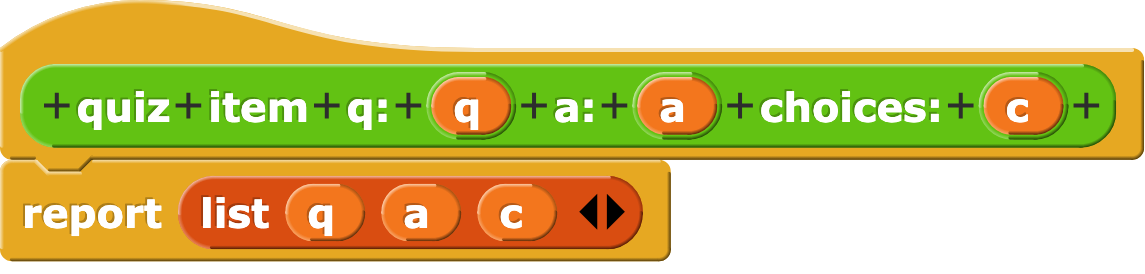

Quiz item constructor

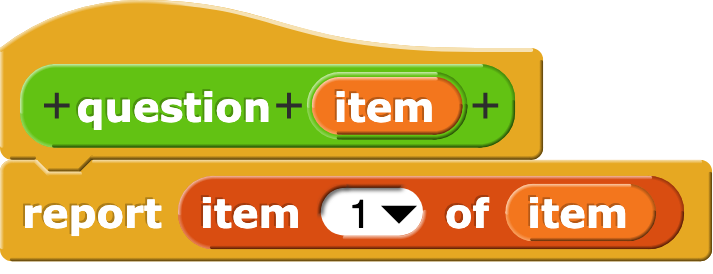

Quiz item question selector

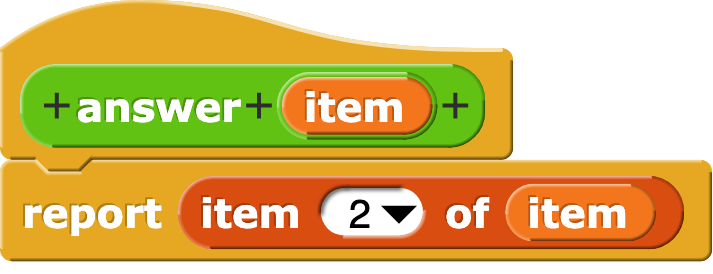

Quiz item answer selector

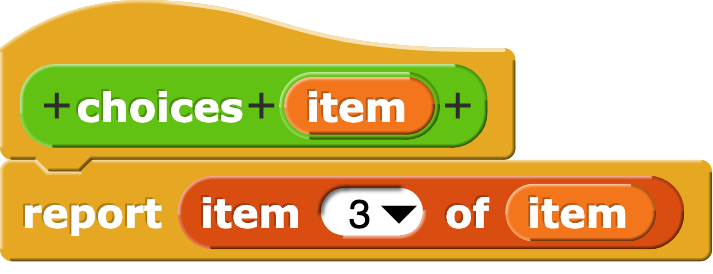

Quiz item choices selector

Student

Constructor

Selectors

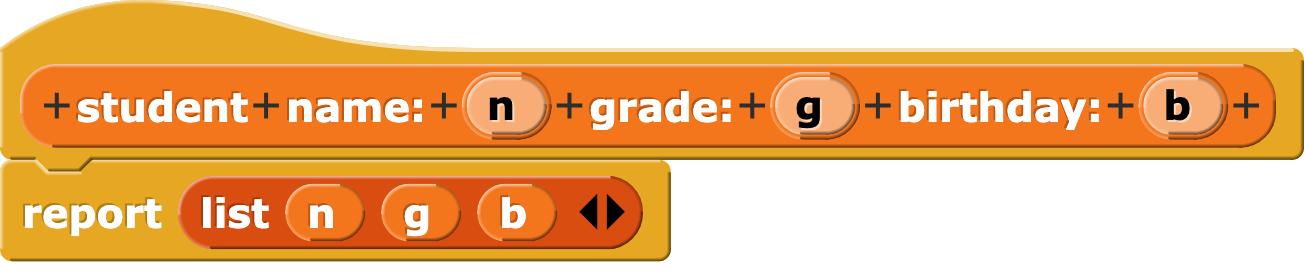

Student constructor

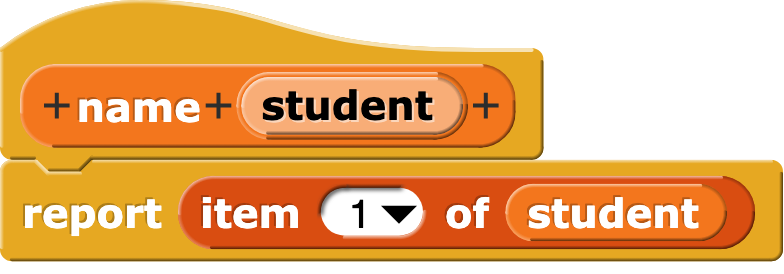

Student name selector

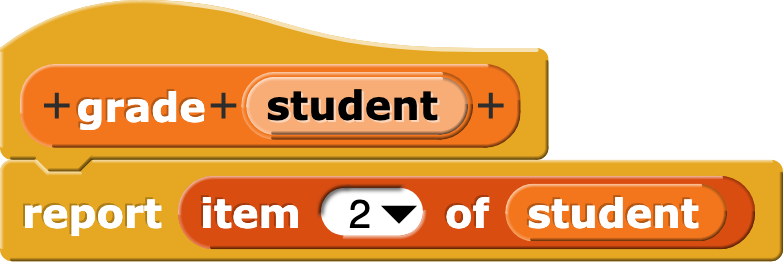

Student grade selector

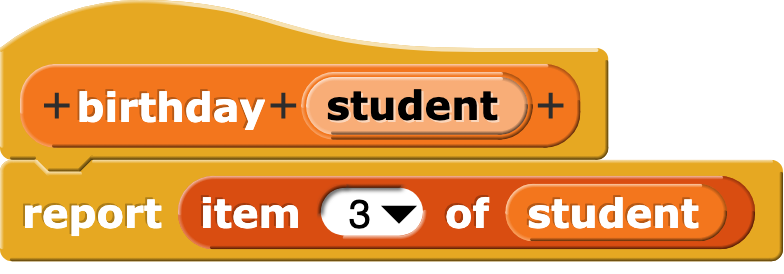

Student birthday selector

Book

Constructor

Selectors

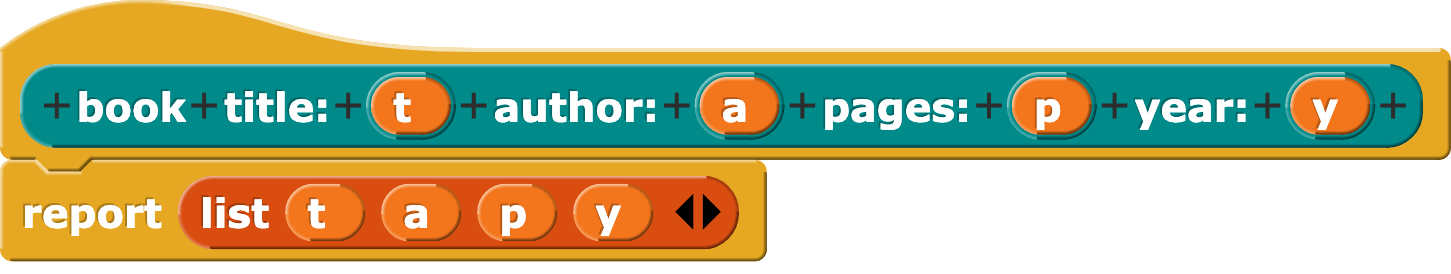

Book constructor

Book title selector

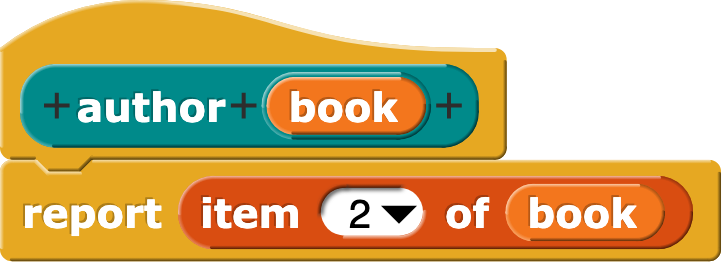

Book author selector

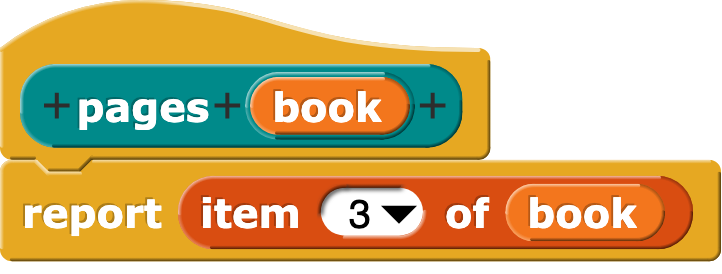

Book pages selector

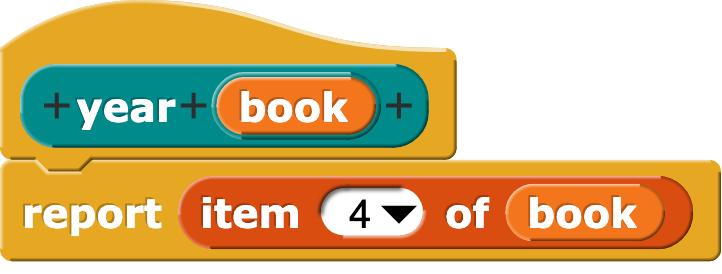

Book year selector

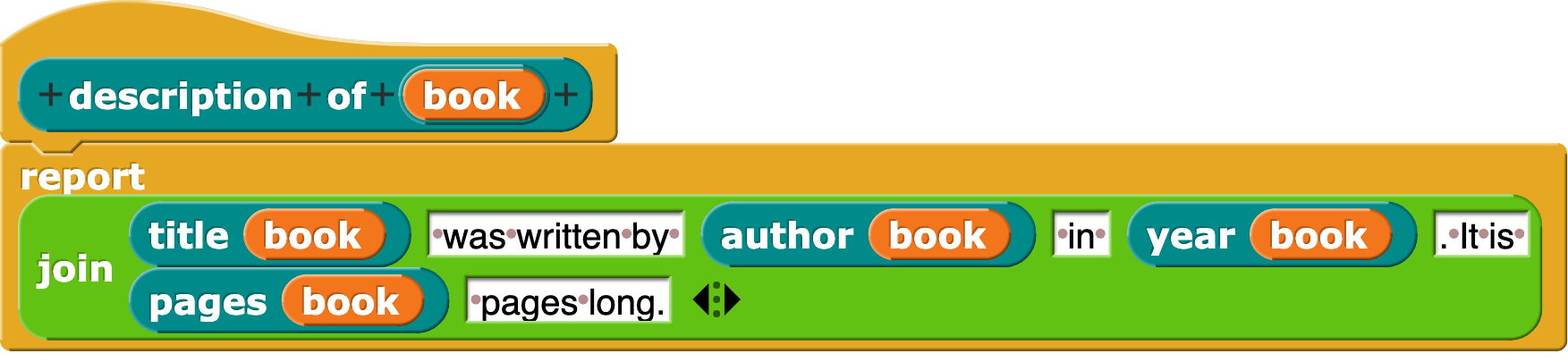

Describe book

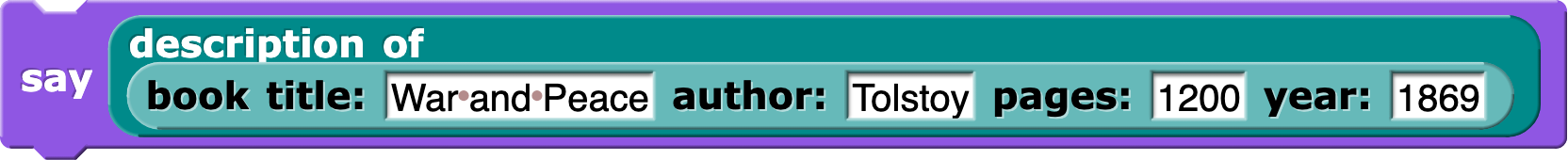

Now use the abstraction to create a new block

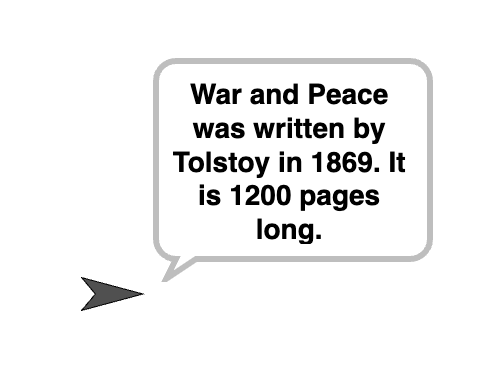

Result

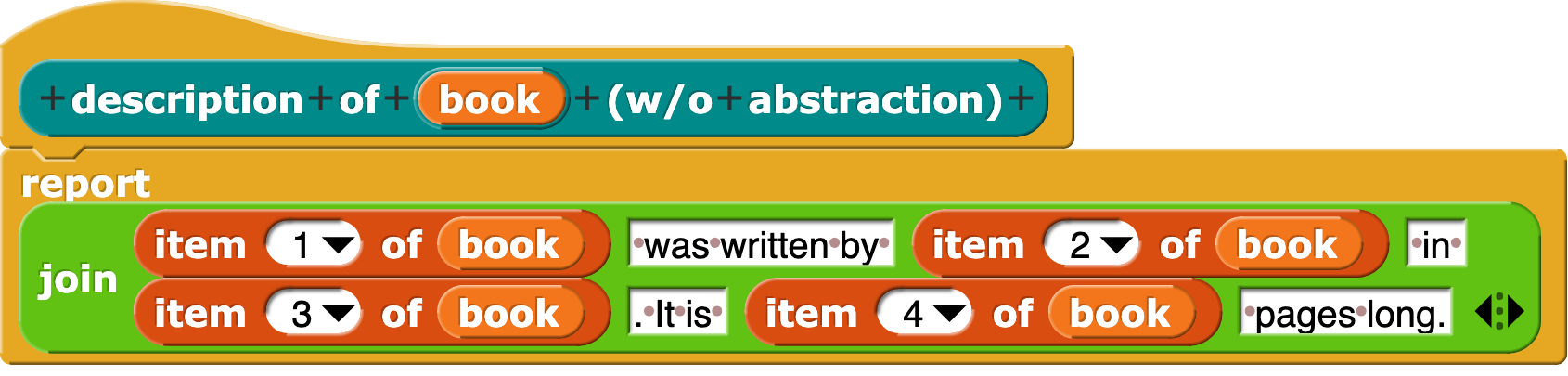

Without abstraction

This is not horrendous but it requires more decoding to understand.

It also has a bug. Can you see it?

Now can you see it?

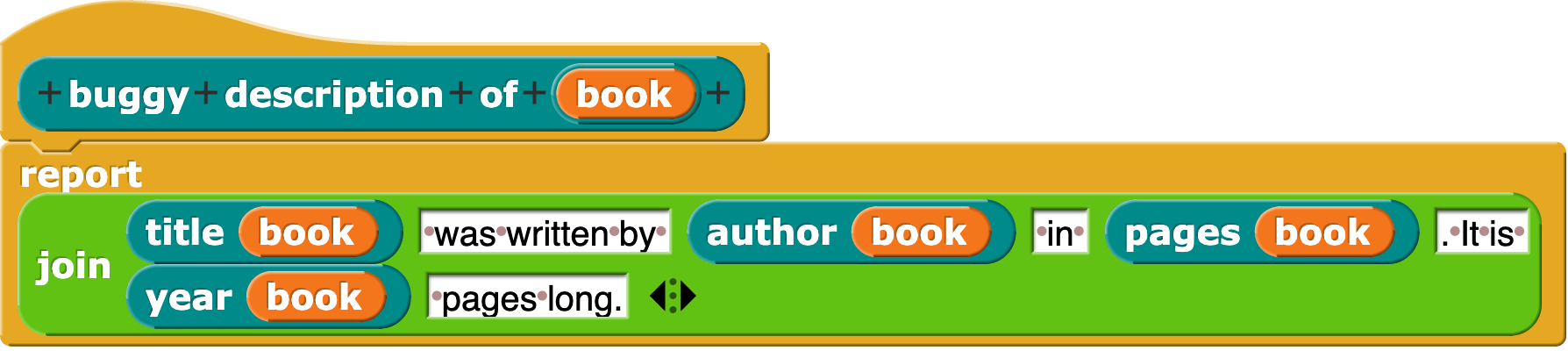

Here’s a block with the same bug but written using our ADT.

Easier, right?

ADT recipe

Write a constructor that takes separate pieces of data as inputs and puts them in a list.

Write selectors that take a single input and extract the appropriate of the items from the list.

Obviously constructors and selectors have to agree on where each piece of data is put in the list.

But no other code should have to care about that.
